10.1 inch Touch Panel PC featuring multi capacitive touch screen and built in RFID NFC reader for interactive kiosk and attendance machine solutions

  • 10.1 inch Touch Panel PC featuring multi capacitive touch screen and built in RFID NFC reader for interactive kiosk and attendance machine solutions
  • 10.1 inch Touch Panel PC featuring multi capacitive touch screen and built in RFID NFC reader for interactive kiosk and attendance machine solutions
  • 10.1 inch Touch Panel PC featuring multi capacitive touch screen and built in RFID NFC reader for interactive kiosk and attendance machine solutions
  • 10.1 inch Touch Panel PC featuring multi capacitive touch screen and built in RFID NFC reader for interactive kiosk and attendance machine solutions
Lugar de origem China
Marca ITD/OEM
Certificação CE, FCC, RoHS
Número do modelo ITD101PPCT5KXX-RFID/NFC
Quantidade de ordem mínima 1PCS
Preço TBA
Detalhes da embalagem 1-5 unidades/CTN, seguro, firme, adequado para envio internacional
Tempo de entrega 12-15 dias úteis
Termos de pagamento T/T
Habilidade da fonte 10.000 unidades/mês
Detalhes do produto
Tamanho do painel 10,1" Resluição 1280*800
Brilho 350cd/㎡(1000 cd/㎡opcional) Ângulo de visão 75/75/75/75
CPU BRAÇO,Intel J900,J6412,J4125,i3,i5,i7 X86 Solução 1 Intel® Celeron J1900/J4125/J6412 2.0GHz
X86 solução 2 Intel® Core i3/i5/i7 (4ª ~ 14ª geração opcional) Entrada de energia DC 12V (entrada DC9 ~ 36V, entrada opcional AC110 ~ 240V)
Destacar

10.1 inch touch panel PC

,

capacitive touch screen PC

,

RFID NFC reader panel PC
Deixe um recado
Descrição de produto

10.1 inch Touch Panel PC featuring multi capacitive touch screen and built in RFID NFC reader for interactive kiosk and attendance machine solutions


ITD 7” multi-touch screen HMI comfort zero-bezel panel PC is fully-integrated‚ multi capacitive touch screen combines high-performance ARM Based processor or x86 based Intel Celeron/Core CPU, RFID/NFC reader integrated and Projected Capacitive Touch (PCT or PCAP) Technology in industrial-grade LCD flat panels, with sleek and flat front surface industrial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD multi-touch panel PC specifically suited for industrial, process manufacturing, discrete manufacturing, industrial automation, building automation, process control, access control, room reservation, room scheduling, medical healthcare, kiosks, machinery manufacturing, and custom machine to machine interface applications.


Specs:

Panel

Cell Type/Glass Surface

TFT

Size/ Aspect Ratio

10.1”/16:10

Active Area/ Pixel Pitch

216.96(H) ×135.6(V)mm/0.1695 × 0.1695mm

Native Resolution/ Colors

1280×800/16.7M

Brightness/ Contrast

350cd/㎡/800:1

Response Time/ Viewing Angle (Typical)

25ms/85/85/85/85

Light Source

LED Backlight with 30000Hours’Lifetime

SYSTEM

Item

ARM Solution 1

ARM Solution 2

ARM Solution 3

CPU

Octa-Core Cortex-A53 up to 1.5GHz

Quad-Core Cortex-A53 1.8GHz

Quad-Core Cortex-A72 + Quad-Core Cortex-A53, Max Frequency 2.1GHz

Quad core Cortex-A76 + Quad-core Cortex-A55, Max. 2.4GHz

GPU

Mali-G52-2EE High Performance GPU

ARM Mali-G52 MC3 GPU

ARM Mali-G610 MP4 Quad Core GPU

NPU

Support up to 1.0T

Provides 3 TOPS of Computing Power and Supports INT4, INT8, INT16, FP16, BF16, and TF32 Precision Formats.

Delivers up to 6 TOPS of Computing Power and Supports Mixed-precision Operations (INT4/INT8/INT16), Enabling Network Model Conversion Based on Frameworks such as TensorFlow, MXNet, PyTorch, and Caffe.

Chipset

Rockchip RK3568/RK3288

Rockchip RK3576

Rockchip RK3588

Memory

LPDDR4X/LPDDR4 2GB standard, optional 4GB/8GB

LPDDR4X/LPDDR4 4GB standard, optional 8GB

LPDDR4X/LPDDR4 4GB standard, optional 8GB/16GB

Storage

eMMC 16G, optional 32GB/64GB/128GB

eMMC 32G Standard, optional 64GB/128GB

EMMC 32G Standard, optional64GB/128GB

Decoding Resolution

Support 1080P/H.265(4K2K)

Support 1080P/H.265(4K2K)

Support 1080P/H.265(8K4K2K)

Standard I/O

1 × HDMI Output;

1 × USB 3.0; 1 × USB 3.0 OTG

1 × TF Card Slot

1 × U-boot Key

1 × Audio Output

1 × RJ45 Port

1 × HDMI Output;

1 × USB 3.0; 1 × USB 2.0 OTG

1 × TF Card Slot

1 × U-boot Key

1 × Audio Output

1 × RJ45 Port

1 × HDMI Output;

1 × USB 3.0; 1 × USB 2.0

1 × Type-C 3.0

1 × U-boot Key, 1 × Debug

1 × Audio Output

1 × RJ45 Port

LAN

1 × 10/100/1000Mbps Ethernet

1 × 10/100/1000Mbps Ethernet

1 × 10/100/1000Mbps Ethernet

Wireless

WiFi, Bluetooth optional

WiFi, Bluetooth optional

WiFi, Bluetooth optional

OS

Android 11, Linux

Android 14, Linux

Android 12, Linux

GENERAL

Power

Input Voltage

DC 12V Input

Operation/Power Saving

15W

Environment Considerations

Operating Temperature

-10~60℃

Storage Temperature

-20~70℃

Relative Humidity

10%~90% (Non-condensing)

Order Information

10.1” Zero Bezel Android Panel PC with PCAP Touch RK3568/ITD101PPCT5KE2-RFID/NFC

10.1” Zero Bezel Android Panel PC with Tempered Glass No Touch RK3568/ITD101PPCG1KE2-RFID/NFC

10.1” Zero Bezel Android Panel PC with PCAP Touch RK3576/ITD101PPCT5KE3-RFID/NFC

10.1” Zero Bezel Android Panel PC with Tempered Glass No Touch RK3576/ITD101PPCG1KE3-RFID/NFC

10.1” Zero Bezel Android Panel PC with PCAP Touch RK3588/ITD101PPCT5KE4-RFID/NFC

10.1” Zero Bezel Android Panel PC with Tempered Glass No Touch RK3588/ITD101PPCG1KE4-RFID/NFC

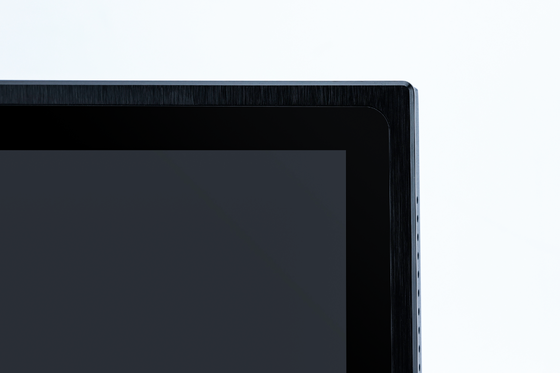

Product Display


10.1 inch Touch Panel PC featuring multi capacitive touch screen and built in RFID NFC reader for interactive kiosk and attendance machine solutions 0



10.1 inch Touch Panel PC featuring multi capacitive touch screen and built in RFID NFC reader for interactive kiosk and attendance machine solutions 1




10.1 inch Touch Panel PC featuring multi capacitive touch screen and built in RFID NFC reader for interactive kiosk and attendance machine solutions 2

7 inch interactive touch kiosk
